Universal Suction Plate

Universal Suction Plate

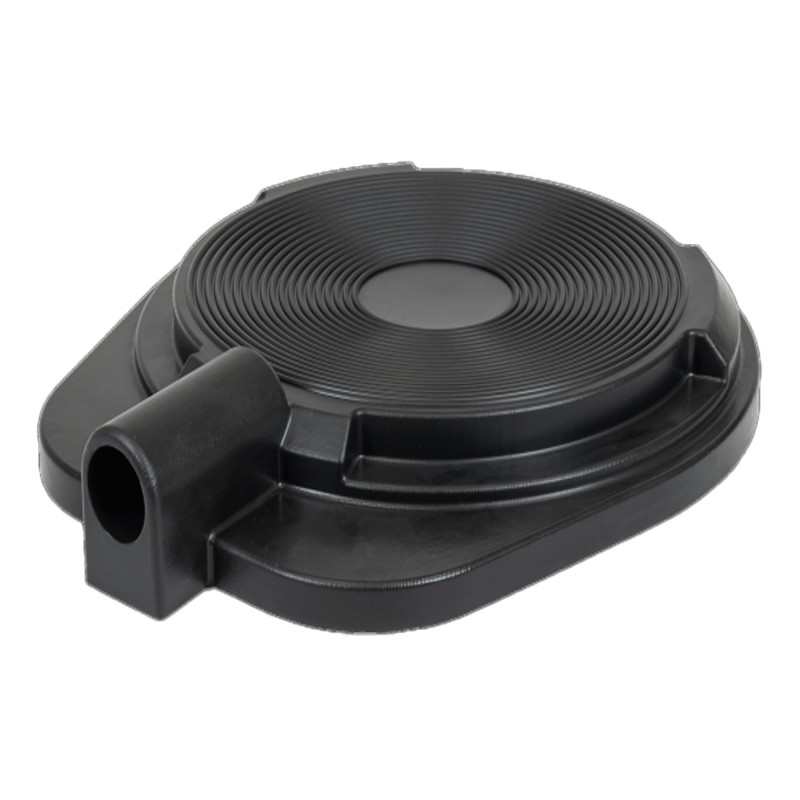

EIBENSTOCK universal dust ring is a high efficiency suction ring that is suitable for both wet and dry diamond core drilling. Thanks to its unique design, this dust ring is applied to the wall via the suction of a dust extraction system which allows the ring to be placed on a variety of surfaces and effectively removes dust and drilling slurry while working.

The drill diameter must be cut out of the perforation material before drilling to ensure a tight seal is formed around the core bit.

Features:

• High efficiency dust removal
• Suitable for both wet and dry diamond core drilling
• Dust ring is applied to the wall via the suction of a dust extraction
• Can be placed on most surfaces
• Easy to move around the working area
• Excellent for series drilling
• Can remove diamond core drilling slurry while wet coring
• Helps to remove most debris and dust for an almost dust-less drilling process
• Perforation material must be cut before drilling to ensure a tight seal is formed around the core bit

Sizes:

• 162mm - Maximum core diameter of 162mm
• 252mm - Maximum core diameter of 252mm
